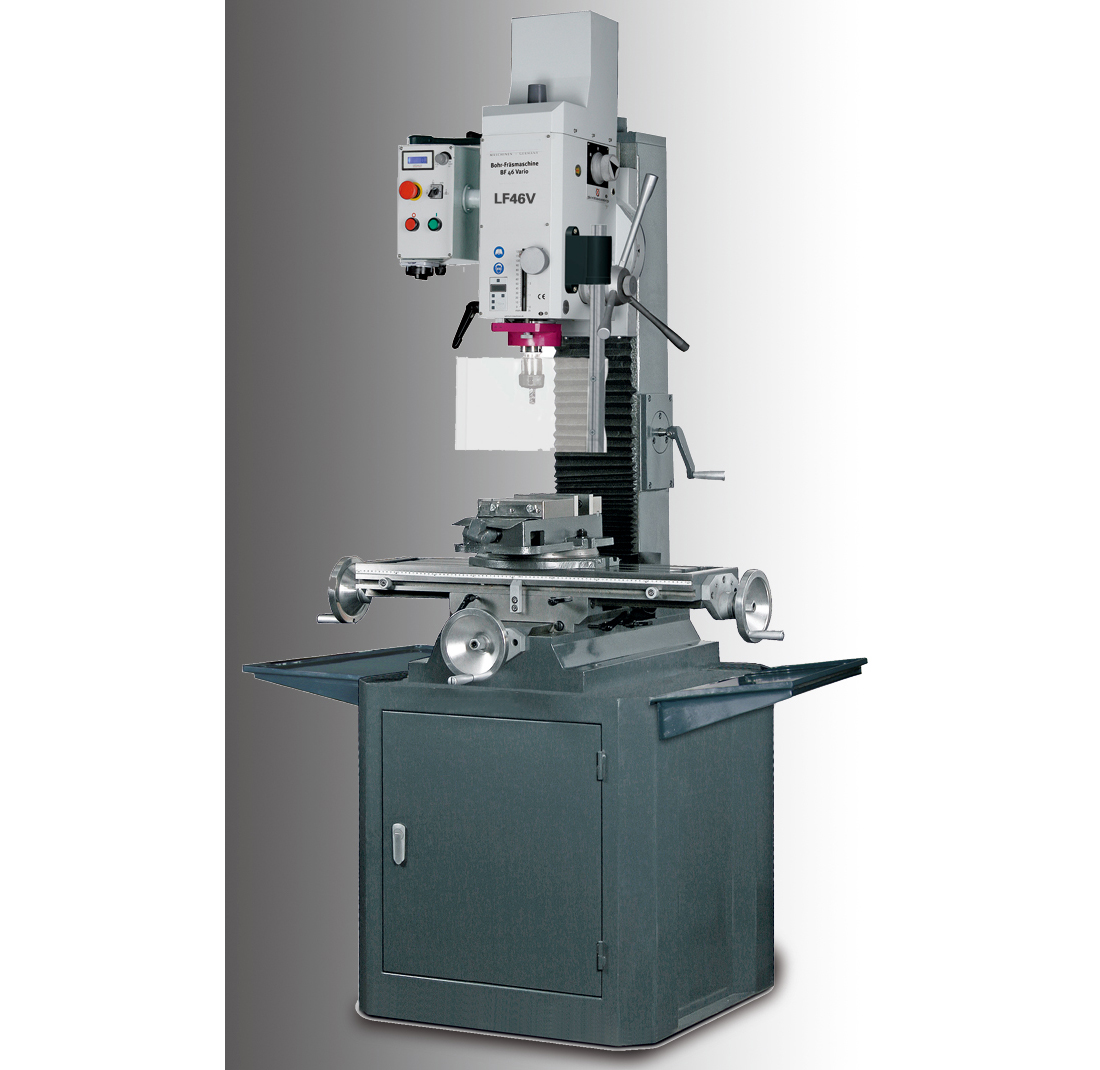

TYK30V/TYK46V型 鉆銑床
型號 Model TYK30 V TYK46 V 產品編號 Code No. Z2503000 Z2504600 加工范圍 CAPACITY 鉆孔直徑 Drilling capacity(max.) Ø35mm Ø45mm 面銑直徑 Milling capacity cutter head(max.) Ø75mm Ø80mm 立銑直徑 Milling capacity end mill cutter(max.) Ø30mm Ø32mm 主軸 SPINDLE HOLDING FIXTURE 主軸錐度 Spindle holding fixture MT3/SK30 MT4/SK40 套筒直徑 Sleeve diameter Ø68 Ø80 套筒行程 Sleeve travel 100mm 115mm 主軸軸線至立柱表面距離 Distance spindle-column 240mm 290mm 鉆銑頭 DRILL-MILL HEAD 主軸傾斜角度 Spindle inclined angle ±45° ±45° 主軸轉速 Spindle speed L:100-1100rpm M:160-1700rpm H:320-3100rpm L:115-600rpm&...
分享
相關產品
描述
| 型號 | Model | TYK30 V | TYK46 V |
| 產品編號 | Code No. | Z2503000 | Z2504600 |
| 加工范圍 | CAPACITY | ||
| 鉆孔直徑 | Drilling capacity(max.) | Ø35mm | Ø45mm |
| 面銑直徑 | Milling capacity cutter head(max.) | Ø75mm | Ø80mm |
| 立銑直徑 | Milling capacity end mill cutter(max.) | Ø30mm | Ø32mm |
| 主軸 | SPINDLE HOLDING FIXTURE | ||
| 主軸錐度 | Spindle holding fixture | MT3/SK30 | MT4/SK40 |
| 套筒直徑 | Sleeve diameter | Ø68 | Ø80 |
| 套筒行程 | Sleeve travel | 100mm | 115mm |
| 主軸軸線至立柱表面距離 | Distance spindle-column | 240mm | 290mm |
| 鉆銑頭 | DRILL-MILL HEAD | ||
| 主軸傾斜角度 | Spindle inclined angle | ±45° | ±45° |
| 主軸轉速 | Spindle speed | L:100-1100rpm M:160-1700rpm H:320-3100rpm |
L:115-600rpm M:270-1400rpm H:590-3100rpm |
| 十字工作臺 | CROSS TABLE | ||
| 工作臺（長×寬） | Tabel(L×W) | 750x210mm | 850x240mm |
| X軸行程 | X-axis travel | 450mm | 500mm |
| Y軸行程 | Y-axis travel | 200mm | 260mm |
| Z軸行程 | Z-axis travel | 470mm | 540mm |
| T型槽尺寸/距離/數量 | T-slot size/distance/number | 12mm / 63mm / 3 | 18mm / 80mm / 3 |
| 主軸端面至工作臺面*大距離 | Distance spindle-cross table(max.) | 470mm | 550mm |
| 電機 | ELECTRIC SUPPLY | ||
| 電機功率 | Motor | 2.2KW DC brushless motor | 2.2KW DC brushless motor |
| 外形尺寸及重量 | DIMENSIONS AND WEIGHT | ||
| 外形尺寸（長×寬×高） | size(L×W×H) | 1073×791×1324mm | 950x1210x1520mm |
| 包裝尺寸（長×寬×高） | packing size(L×W×H) | 844x844x1342mm | 904×904×1535mm |
| 凈重/毛重 | Net weight/Gross weight | 266/318kg | 426/492kg |
