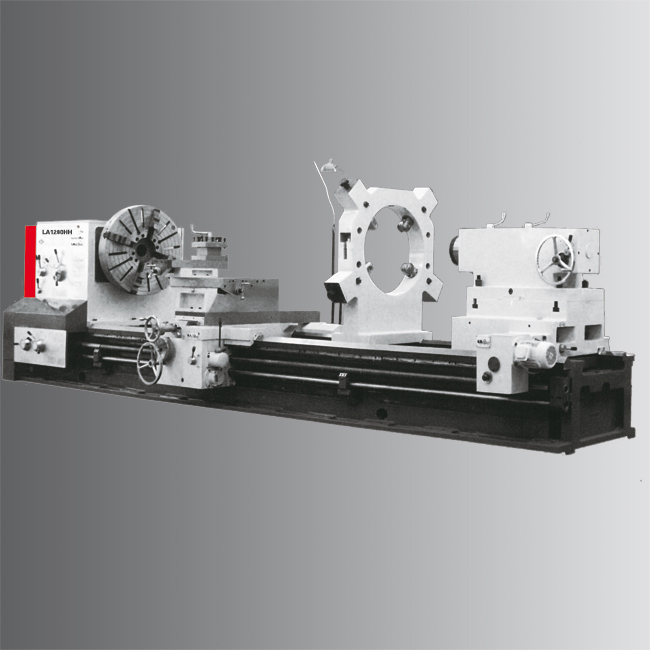

TYK1280HH/TYK1480HH/TYK1680HH/TYK1980HH/TYK2080HH型 車床
型號 MODEL TYK1280HH TYK1480HH TYK1680HH TYK1980HH TYK2080HH 貨號 Item No. P4604200 P4606200 P4608200 P4609200 P4615200 機床*大承重 Max workpiece weight 12T 12T 12T 12T 12T 床身上*大回轉直徑 Max swing over bed Φ1280mm Φ1480mm Φ1680mm Φ1980mm Φ2080mm 橫拖板上*大回轉直徑 Max swing over cross slide Φ840mm Φ1040mm Φ1240mm Φ1500mm Φ1600mm 兩尖頂距離 Center distance 2m 3m 4m 5m 6m 8m 10m 12m 馬鞍上*大回轉直徑 Max swing over gap Φ1580mm Φ1780mm Φ1980mm Φ2280mm Φ2380mm 馬鞍槽端面到主軸法蘭盤端面距離 Valid length of gap 600mm 600mm 600mm 600mm 600mm 床身寬度 Bed width 1100mm 1100mm 1100mm 1100mm 1100mm 床頭箱 Headstock 主軸孔徑 Spindle bore ∮130mm ∮130mm ∮130mm ∮130mm ∮130mm 主軸錐孔 Spindle taper 140# 140# 140...
分享
相關產品
描述
| 型號 | MODEL | TYK1280HH | TYK1480HH | TYK1680HH | TYK1980HH | TYK2080HH |
| 貨號 | Item No. | P4604200 | P4606200 | P4608200 | P4609200 | P4615200 |
| 機床*大承重 | Max workpiece weight | 12T | 12T | 12T | 12T | 12T |
| 床身上*大回轉直徑 | Max swing over bed | Φ1280mm | Φ1480mm | Φ1680mm | Φ1980mm | Φ2080mm |
| 橫拖板上*大回轉直徑 | Max swing over cross slide | Φ840mm | Φ1040mm | Φ1240mm | Φ1500mm | Φ1600mm |
| 兩尖頂距離 | Center distance | 2m 3m 4m 5m 6m 8m 10m 12m | ||||
| 馬鞍上*大回轉直徑 | Max swing over gap | Φ1580mm | Φ1780mm | Φ1980mm | Φ2280mm | Φ2380mm |
| 馬鞍槽端面到主軸法蘭盤端面距離 | Valid length of gap | 600mm | 600mm | 600mm | 600mm | 600mm |
| 床身寬度 | Bed width | 1100mm | 1100mm | 1100mm | 1100mm | 1100mm |
| 床頭箱 | Headstock | |||||
| 主軸孔徑 | Spindle bore | ∮130mm | ∮130mm | ∮130mm | ∮130mm | ∮130mm |
| 主軸錐孔 | Spindle taper | 140# | 140# | 140# | 140# | 140# |
| 主軸轉速范圍 | Spindle speeds | 3-315rpm或2-200rpm或2-250rpm | ||||
| 進給箱 | GEAR BOX-THREADS & FEEDS | |||||
| 快速進給：縱向/橫向 | Rapid feed:long/cross | 3400mm/min,1700mm/min | ||||
| 刀架 | TOOL POST | |||||
| 主軸中心至刀具安裝面距離 | Distance between Center&Tool | 48mm | 48mm | 48mm | 48mm | 48mm |
| 刀具截面 | Tool section | 45*45mm | 45*45mm | 45*45mm | 45*45mm | 45*45mm |
| 拖板 | CARRIAGE | |||||
| 中拖板*大行程 | Cross slide travel | 860mm | 860mm | 860mm | 860mm | 860mm |
| 小拖板*大行程 | Top slide travel | 280mm | 280mm | 280mm | 280mm | 280mm |
| 尾座 | TAILSTOCK | |||||
| 尾座套筒直徑 | Sleeve diameter | ∮260mm | ∮260mm | ∮260mm | ∮260mm | ∮260mm |
| 尾座套筒錐度 | Sleeve taper | 80# | 80# | 80# | 80# | 80# |
| 尾座套筒*大行程 | Sleeve travel | 300mm | 300mm | 300mm | 300mm | 300mm |
| 電機 | MOTOR | |||||
| 主電機 | Main drive motor | 30KW | 30KW | 30KW | 30KW | 30KW |
| 冷卻泵電機 | Coolant pump motor | 0.15KW | 0.15KW | 0.15KW | 0.15KW | 0.15KW |
| 快速進給電機 | Rapid feed motor | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
| 尾架電機 | Tailstock motor | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
